Modular Sample Panel (MSP) Solution's P/N:FG00-0004
Solutions Sample Systems Product Numbers:
FG00-0004 Modular Sample Panel, high-pressure (>600 psi) with Sample Cooler 2.4 (SC2.4) (MSP-HP, SC2.4)
FG00-1004 Modular Sample Panel, low-pressure (<600 psi) with Sample Cooler 2.4 (SC2.4) (MSP-LP, SC2.4)
FG00-3004 Modular Sample Panel, high-pressure (>600 psi) with Sample Cooler 3.5 (SC3.5) (MSP-HP, SC3.5)
FG00-4004 Modular Sample Panel, low-pressure (<600 psi) with Sample Cooler 3.5 (SC3.5) (MSP-LP, SC3.5)
FG00-5004 Modular Sample Panel, high-pressure (>600 psi) with Sample Cooler 4.7 (SC4.7) (MSP-HP, SC4.7)
FG00-6004 Modular Sample Panel, low-pressure (<600 psi) with Sample Cooler 4.7 (SC4.7) (MSP-LP, SC4.7)

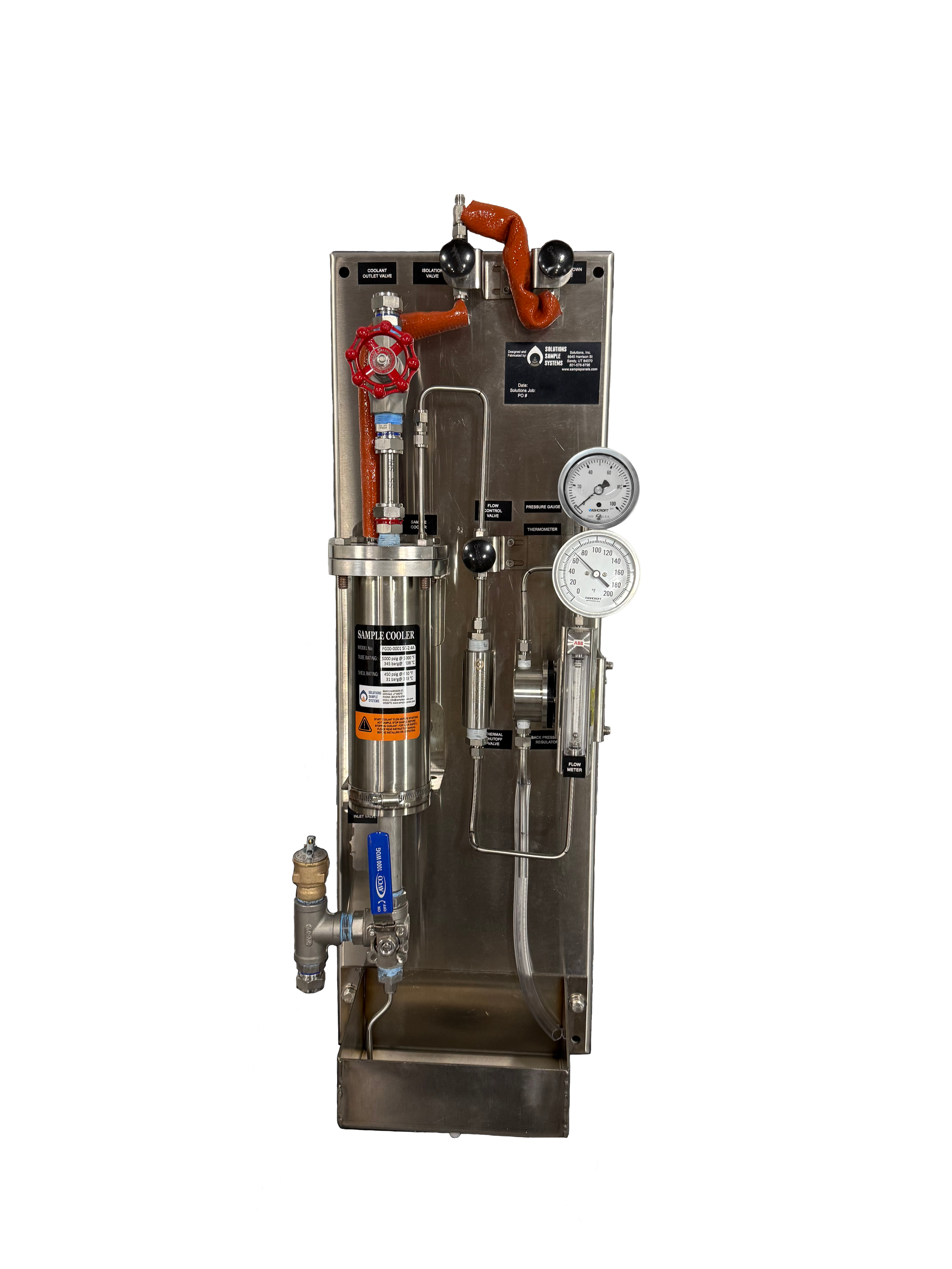

Modular Sample Panel, rated up to 3000 psig at 1000 deg. F max, on 304 Stainless backplate 30" H X 12" W, with sample cooler, variable capilary valve, back presure regulator, pressure, temp, and flow Indicator, overtemp thermal shutoff valve set at 140 deg. F. Recommended flow rate of 250 cc/min.
Also available larger coolers SC3.5 or SC4.7 for more sample cooling.
